Description

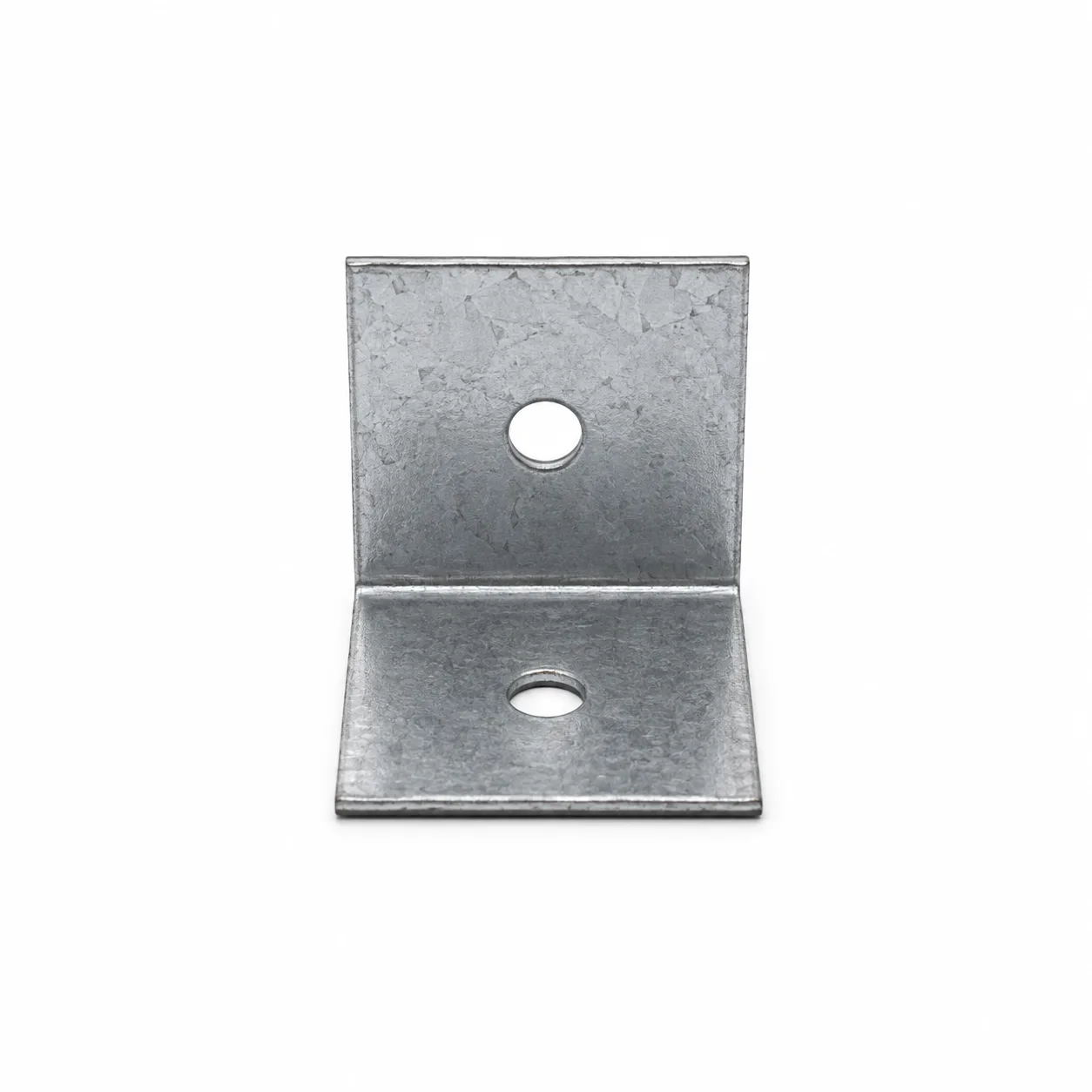

EMP01 Angle Bracket

Product Description

The EMP01 Angle Bracket is a versatile, general-purpose connector designed for light-duty timber-to-timber, timber-to-masonry, and timber-to-steel applications. Manufactured to provide reliable structural support and secure fixing points, it is ideal for a wide range of residential, commercial, and DIY construction projects.

Precision manufactured in South Africa, the EMP01 bracket offers strength, durability, and corrosion resistance, making it suitable for both indoor and protected outdoor environments.

Specifications

• Product Code: EMP01
• Dimensions: 50mm x 50mm x 50mm
• Material Thickness: 2.5mm
• Hole Size: 8mm
• Identification Mark: B

Applications

The EMP01 Angle Bracket is suitable for:

• Timber-to-timber connections
• Timber-to-masonry fixings
• Light structural framing
• General building and construction projects
• DIY and maintenance applications
• Support and reinforcement of timber structures

Material

Manufactured from 2.5mm Z275 galvanised mild steel plate, providing excellent corrosion resistance and long-lasting performance.

Safe Working Load

The safe working load is determined by the load-bearing capacity of the fixing bolts, fasteners, and supporting materials used in the installation. Appropriate fixings should always be selected according to the application requirements.

Key Benefits

✔ High-quality galvanised steel construction

✔ Corrosion-resistant Z275 coating

✔ Precision manufactured for consistent quality

✔ Suitable for timber and masonry applications

✔ Easy installation using standard 8mm fixings

✔ Manufactured in South Africa with precision and pride

Truss Works – Built on Trust. Designed for Strength. Delivered with Service.
